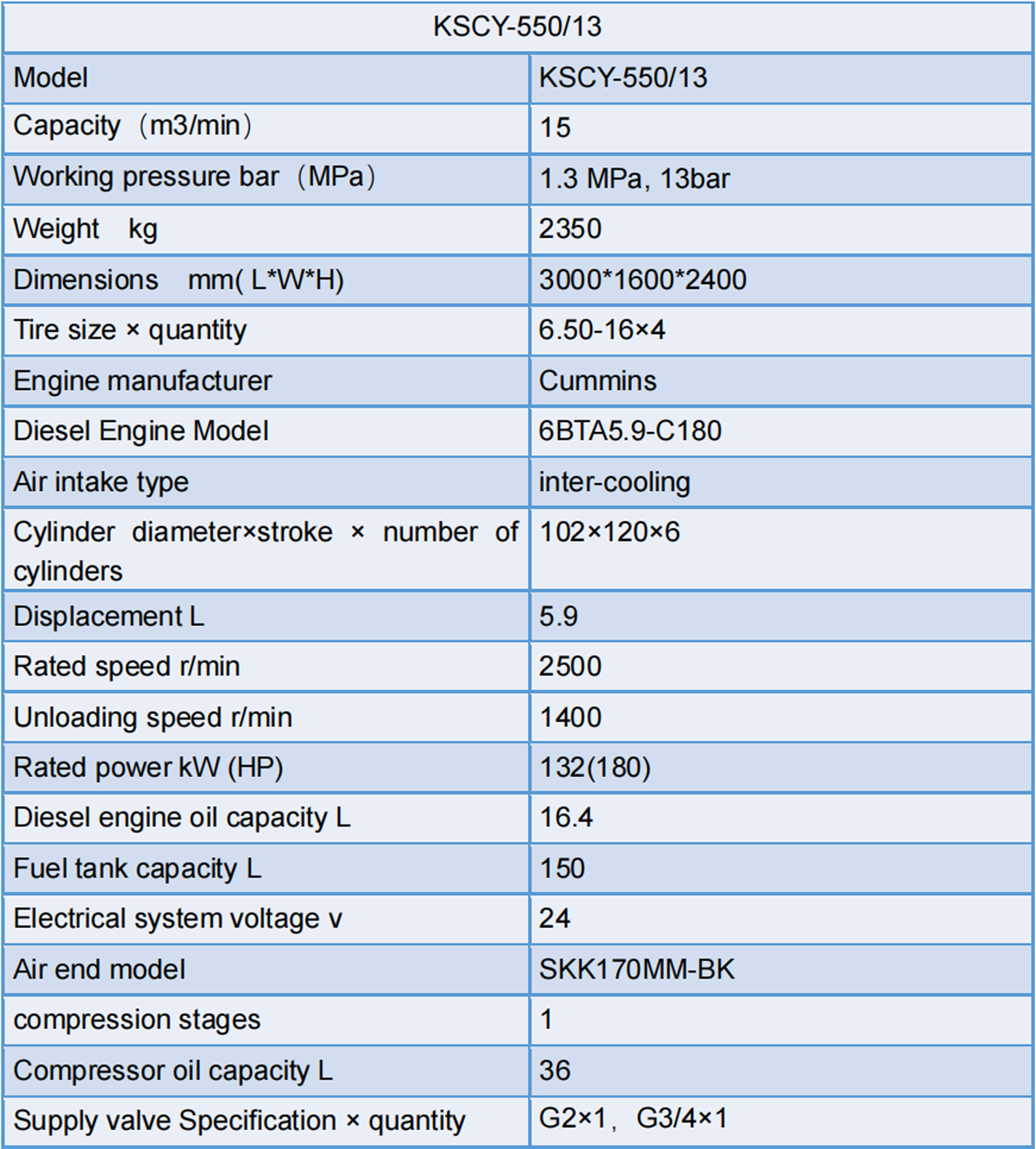

Diesel Screw Air Compressor KSCY-550/13

Short Description:

Diesel Portable screw air compressors are widely used in industries such as highways, railways, mines, water conservancy, shipbuilding, urban construction, energy, and military.

Zhejiang Kaishan Compressor Co., Ltd. has always been a market leader in diesel Portable screw air compressors in China, and is also a domestic enterprise capable of producing two-stage compression high-pressure screw main engines. The production increases significantly every year and has a good reputation in the domestic Portable screw air compressor market.

Kaishan brand diesel Portable screw air compressor is efficient and reliable, with a complete variety, power range of 37-300kW, displacement range of 30m3/min, and maximum exhaust pressure of 2.2MPa.

Characteristics of Kaishan brand diesel Portable screw air compressor

1. Main engine: With a patented large-diameter rotor design, the main engine is directly connected to the diesel engine through a high elastic coupling, without a speed increase gear in the middle. The main engine has the same speed as the diesel engine, resulting in higher efficiency, better reliability, and longer lifespan.

2. Diesel engine: Select domestic and foreign famous brand diesel engines such as Cummins and Yuchai, which meet the national II emission requirements, have strong power, low fuel consumption, and a nationwide after-sales service system, allowing users to receive rapid and comprehensive services.

3. The gas volume control system is simple and reliable. According to the size of the gas consumption, the intake volume is automatically adjusted by 0-100%, and the diesel engine throttle is automatically adjusted to save diesel to the maximum extent.

4. The microcomputer intelligently monitors the operating parameters of the air compressor, such as exhaust pressure, exhaust temperature, diesel engine speed, oil pressure, water temperature, and oil tank liquid level, with automatic alarm and shutdown protection functions.

5. Multi stage air filter, suitable for dusty working environments; Multi stage fuel filter, suitable for the current quality status of domestic oil products; Super large oil-water cooler, suitable for high temperature and plateau environments.

6. The spacious maintenance and repair door allows for easy and convenient maintenance of air filters, oil filters, fuel tanks, batteries, and oil coolers, all within reach, reducing downtime.

7. Convenient to move, still able to move flexibly in harsh terrain conditions. Each compressor is equipped with lifting rings for safe and convenient lifting and transportation.
