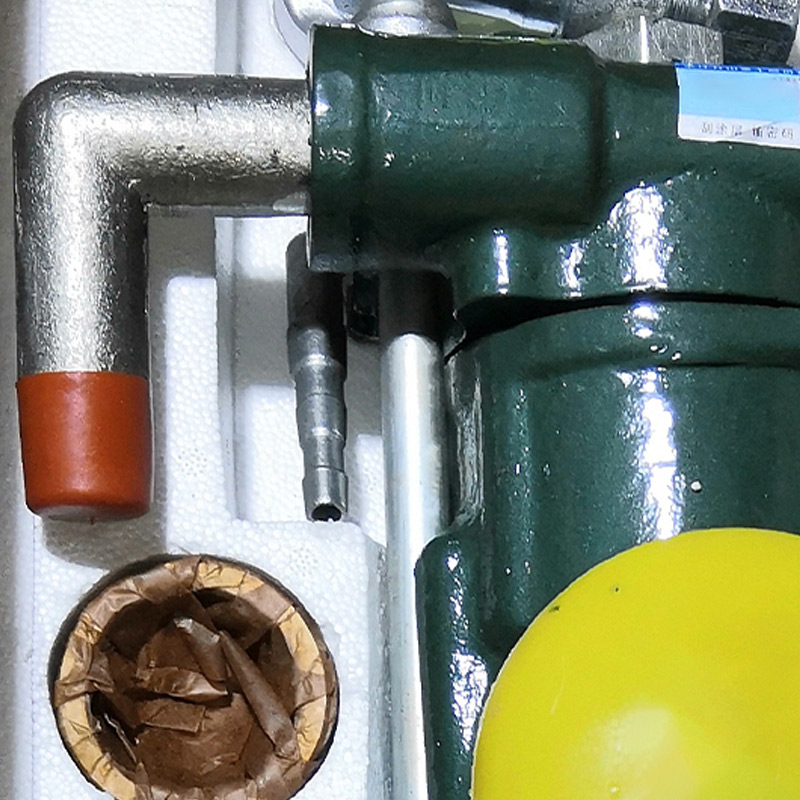

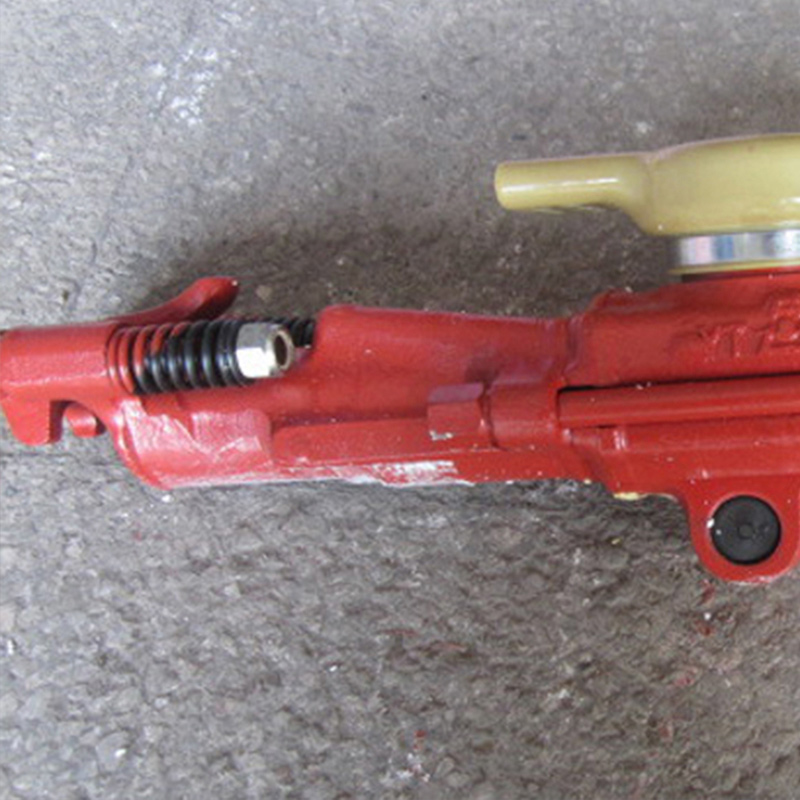

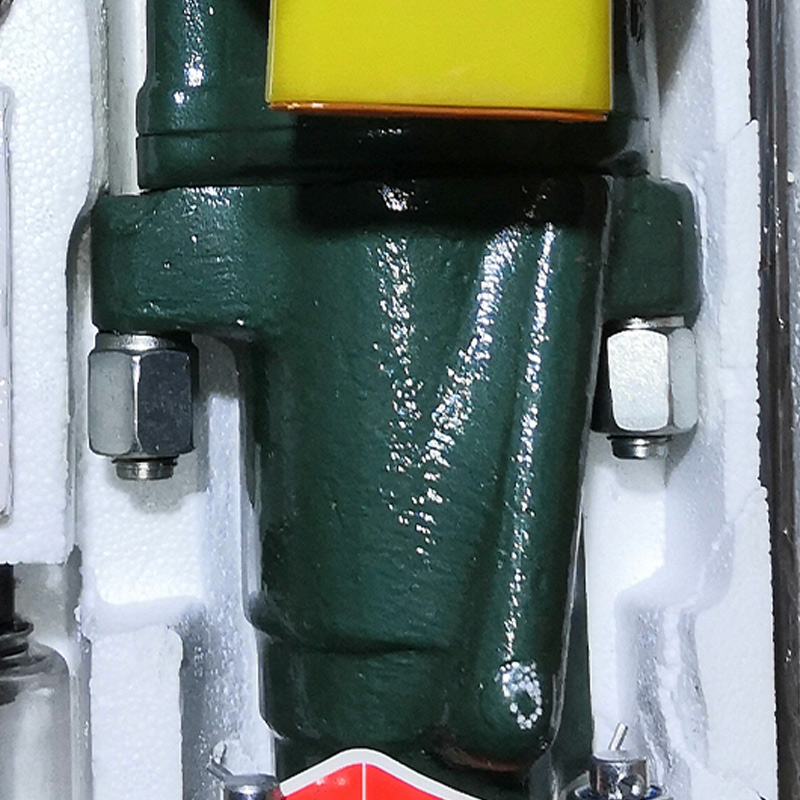

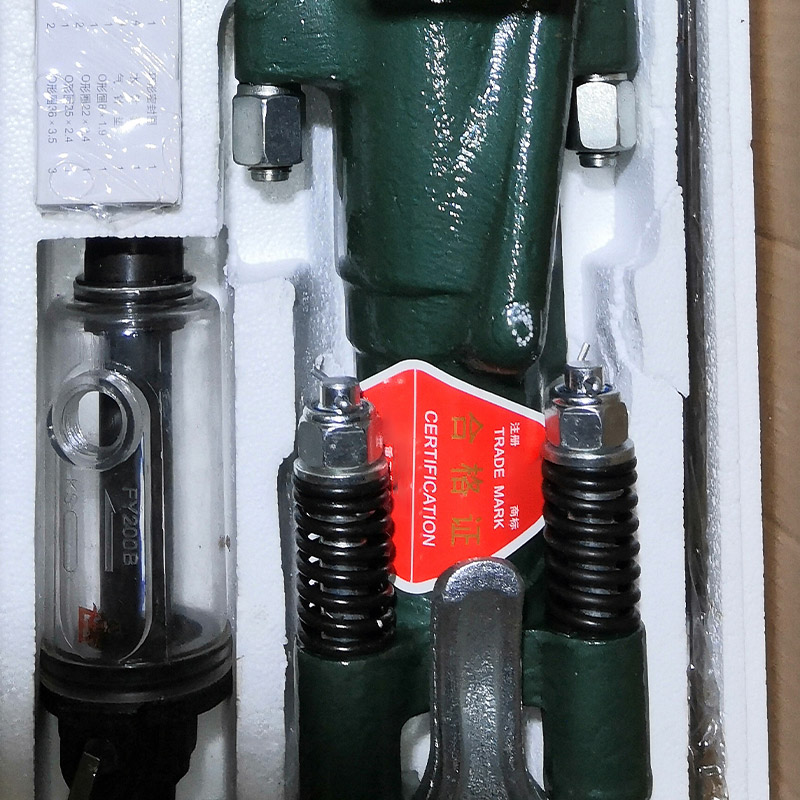

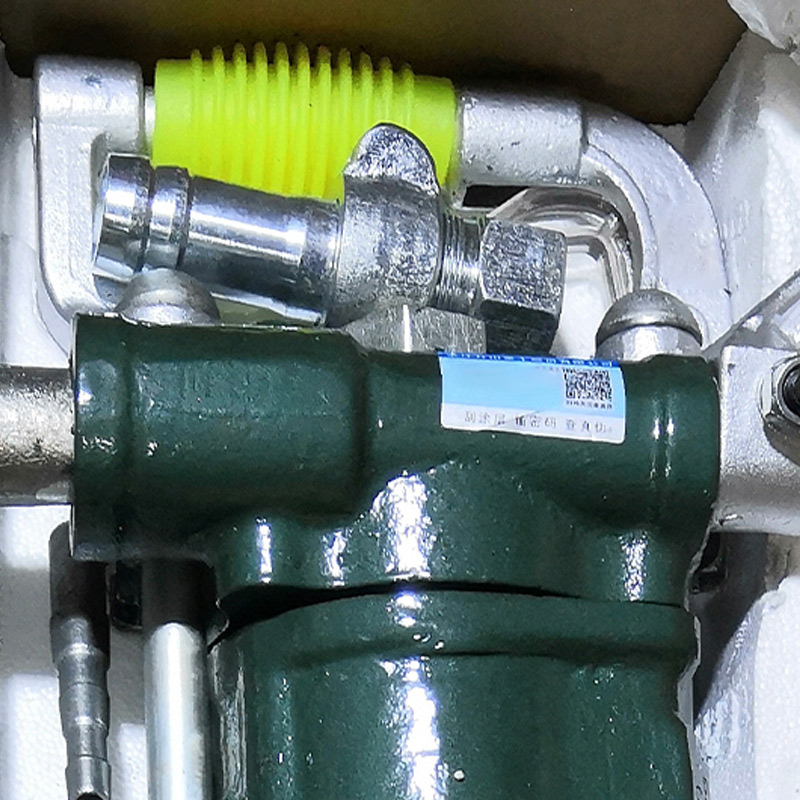

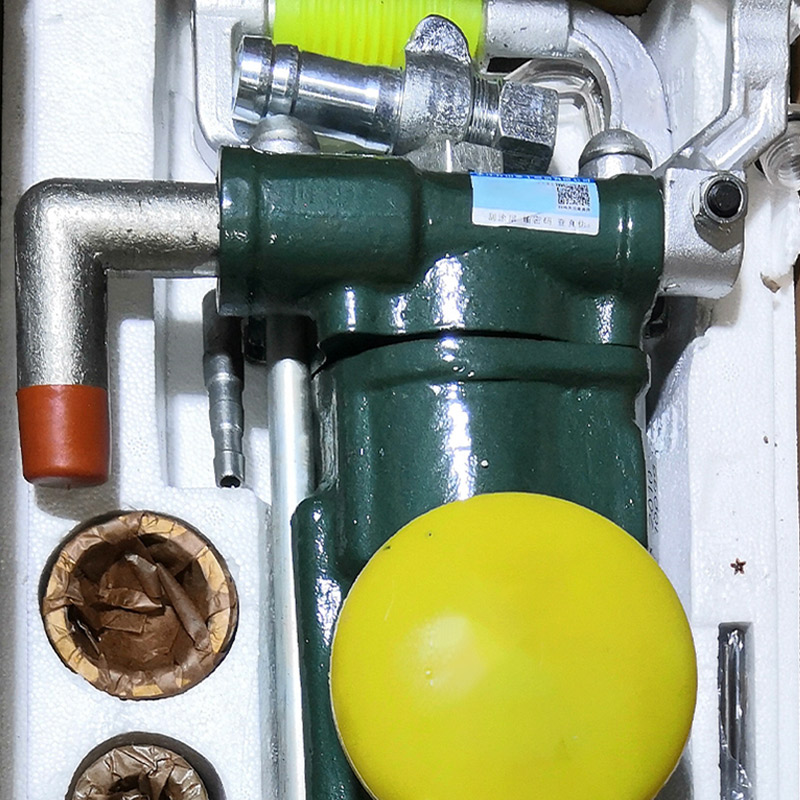

Drilling Rig Rock Drills

Short Description:

With our decades of expertise, we manufacture reliable, high quality and efficient rock drills for mining and civil engineering applications to , boost productivity and minimize downtime. We offer a wide range of rock drills for all your application needs in surface and deep rock drilling, both in mining and civil construction worksites. Our powered and hydraulic rock drills are designed for their users and are known for their high quality, endurance and reliability.


Whatsapp

Product Detail

Product Tags

Features

Compact structure, reliable, high quality and efficient

Small, portable and flexible, minimize downtime

Endurance, and low cost of use

Easy to operate and maintain

Product Details

Rock Drills Parameters

Model YT23 YT23D YT24 ZY24 YT28 MZ7665 YO18 Y18PA Y19A YO20 Y24 Y26
weight 24kg 24kg 24kg 25kg 26kg 26kg 18kg 18kg 19kg 20kg 24kg 26kg
Overall dimensions 628mm 668mm 678mm 690mm 661mm 720mm 550mm 550mm 600mm 561mm 604mm 650mm
Stroke 60mm 70mm 70mm 70mm 60mm 70mm 45mm 45mm 54mm 55mm 70mm 70mm
Cylinder Dia 76 mm 70 mm 70 mm 70 mm 80mm 76 mm 58 mm 58 mm 65 mm 63 mm 76 mm 65 mm
Air pressure 0.35-0.63mpa 0.35-0.63mpa 0.35-0.63mpa 0.35-0.63mpa 0.35-0.63mpa 0.35-0.63mpa 0.35-0.63mpa 0.35-0.63mpa 0.35-0.63mpa 0.35-0.63mpa 0.35-0.63mpa 0.35-0.63mpa
Impact frequency ≥37Hz ≥31Hz ≥31 Hz ≥30Hz ≥37Hz ≥37Hz ≥32Hz ≥30Hz ≥28Hz ≥33Hz ≥27HZ ≥23HZ
Air consumption ≤78L/S ≤67L/S ≤67L/S ≤67L/S ≤81L/S ≤81L/S ≤20L/S ≤24L/S ≤37L/S ≤33L/S ≤50L/S ≤47L/S
Air pipe inside dia 19mm 19mm 19mm 19mm 19mm 19mm 19mm 19mm 19mm 19mm 19mm 19mm
Water pipe inside dia 13mm 13mm 13mm 13mm 13mm 13mm 13mm 13mm 13mm 13mm 13mm 13mm
Drill bit size 32-42mm 32-42mm 32-42mm 32-42mm 32-42mm 32-42mm 32-42mm 32-42mm 32-42mm 32-42mm 32-42mm 32-42mm
Drilll rod size H22X108mm H22X108mm H22X108mm H22X108mm H22X108mm H22X108mm H22X108mm H22X108mm H22X108mm H22X108mm H22X108mm H22X108mm
Impact energy ≥65J ≥65J ≥65J ≥65J ≥70J ≥70J ≥22J ≥22J ≥28J ≥26J ≥65J ≥30J

Applications

Rock excavation projects

Rock Excavation Projects

ming

Surface Mining And Quarrying

Quarrying-and-surface-construction

Quarrying And Surface Construction

Tunneling-and-underground-infrastructure

Tunneling And Underground Infrastructure

Underground-mining

Underground Mining

Water-well

Water Well
