Separated DTH Drilling Rig – KG430(H)

Short Description:

The KG430/KG430H down the hole drill rig for open use is an improved device in compliance with national regulations on diesel-engine emissions. Equipped with the Yuchai four-cylinder engine (China lll), the drill rig meets national standards for emissions and environment. The folding frame track, four-wheel drive are adopted; and track leveling and the tramming motor of plunger piston improve the working pressure and climbing capacity. The expanded pitch and lifting-arm hydraulic cylinder enable it to meet the requirements of limiting position. The double rotation motor increases the rotary torque and revolving speed; and the lifting hydraulic cylinder and chain are expanded to promote the lifting force and reliability. The thickened profile folder is used for the housing, thus improving its level of intensity and rigidity; and the additional ring makes handling and lifting convenient.

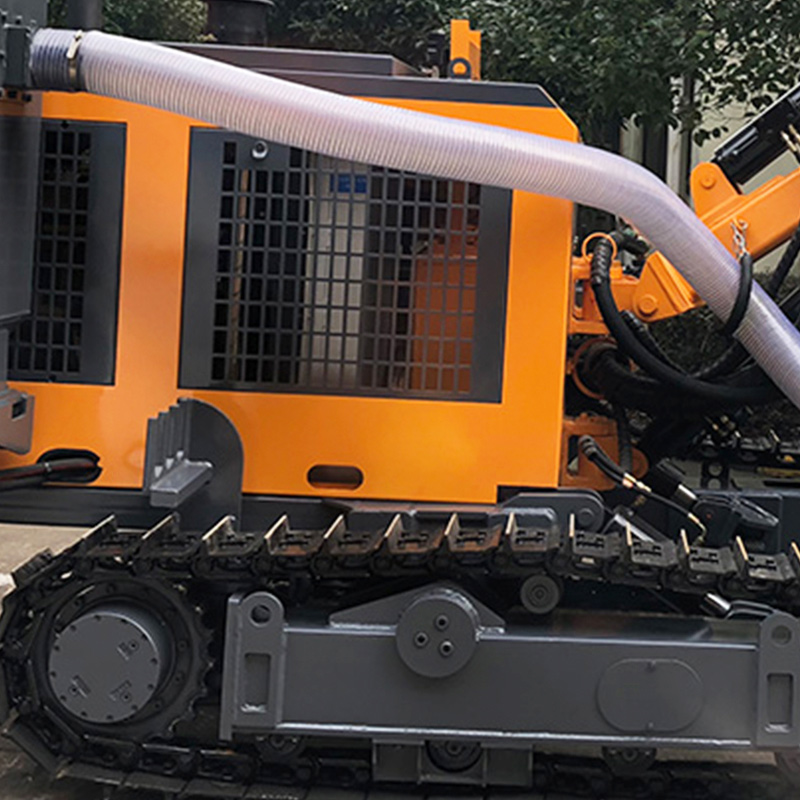

The KG430H down the hole drill rig for open use is equipped with a dust collector, thus making operation more environment-friendly and reliable.

Product Detail

Product Tags


Professional engine, strong power.

Fuel economy, lower fuel consumption and higher productivity.

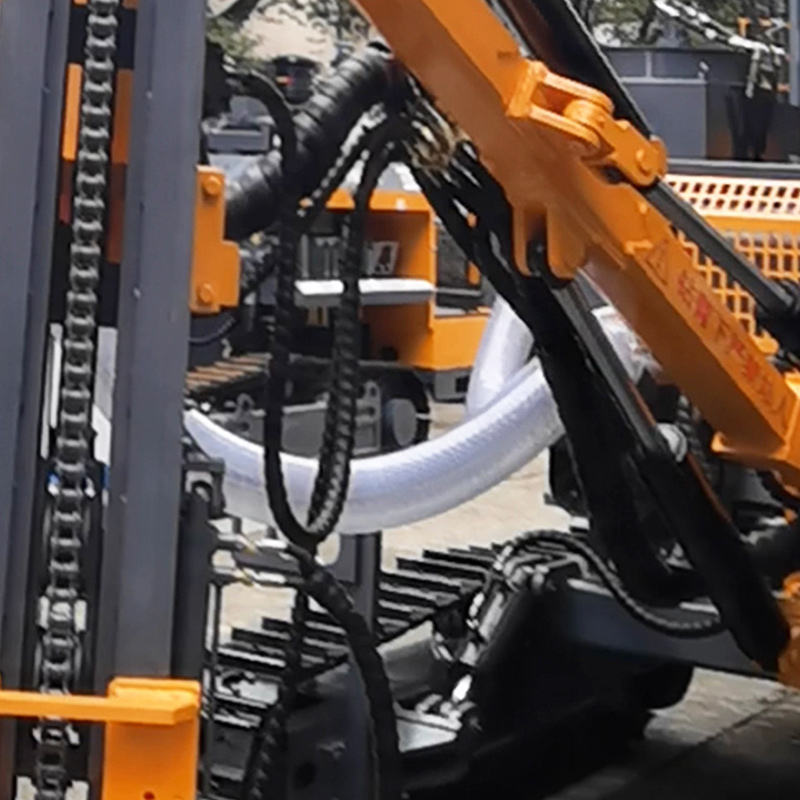

Folding frame track, reliable climbing capacity.

High mobility, smaller footprint.

High level of intensity and rigidity, high reliability.

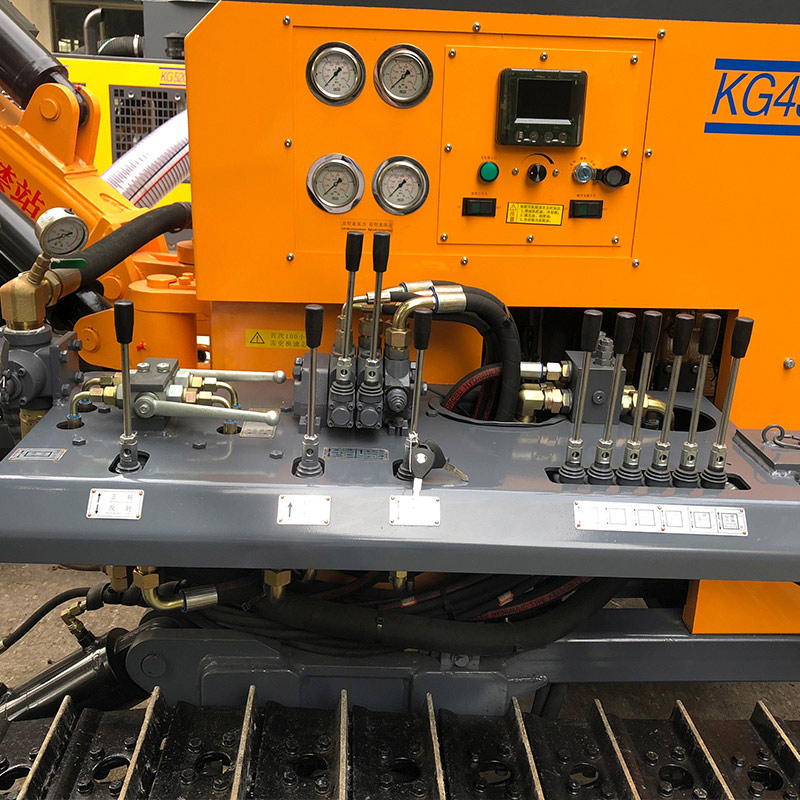

Easy to operate, more environmental friendly.

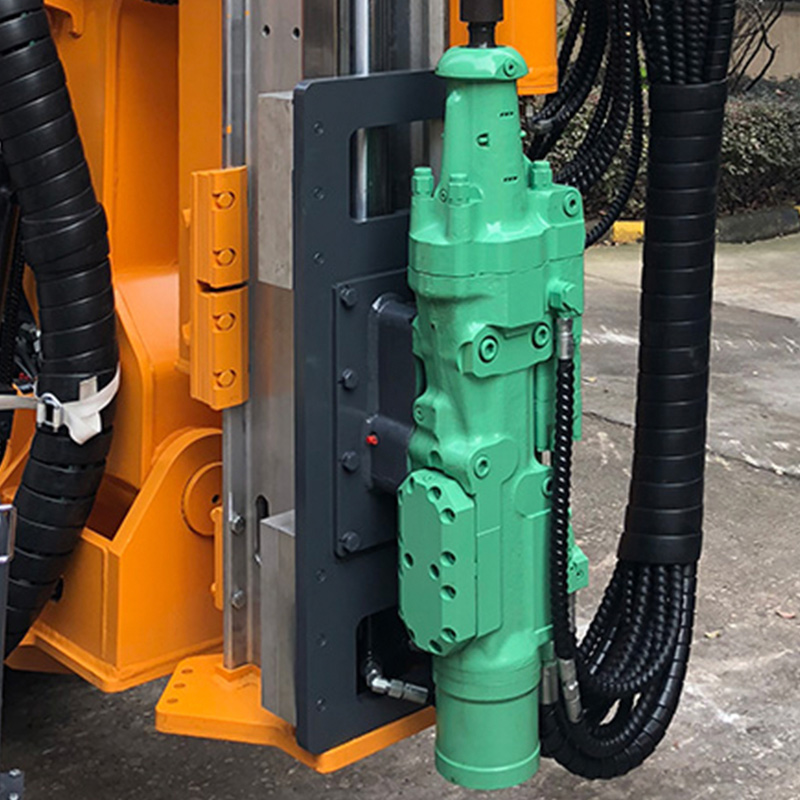

Product Details

Technical Parameters

Model of drill rig KG430 KG430H
Weight of complete machine 5250KG 5700KG
Outer dimensions 6300*2250*2700mm 6300*2400*2700mm
Drilling hardness f=6-20
Drilling diameter Φ90-152mm
Depth of economical drilling 25m
Rotary speed 0-90rpm
Rotary torque (Max) 5000N.m(Max)
Lifting force 40KN
Method of Feed Oil cylinder+roller chain
Feed stroke 3175mm
Travelling speed 0-2.5Km/h
Climbing capacity ≤30°
Ground clearance 500mm
Tilt angle of Beam Down: 110°,  up:35°, total: 145°
Swing angle of boom Left: 91°, right: 5°, total: 96°
Pitch angle of drill boom Down: 55°,  up:15°, total: 70°
Swing angle of drill boom Left: 32°,right: 32°, total: 64°
Leveling angle of track ±10°
Compensation length of beam 900mm
Supporting power Yuchai YC4DK80-T302 (58KW / 2200r / min) KG430
Yuchai YC4DK100-T304 (73KW / 2200r / min) KG430H
DTH hammer K40
Drilling rod Φ76*2m+Φ76*3m
Air consumption 13-20m³/min
Maximum height of horizontal hole 2850mm
Minimum height of horizontal hole 350mm
